Been pissin’ down rain off n on, windy to boot, and enough cloud cover that my efforts to sort out what works/what doesn’t, on the armature were fraught with lots of curses at clouds and (im)patiently waiting between shade and sunlight. ‘I’m gonna have to figure something else out‘ is the final judgement. I have options, no worries there. but the ‘dumb’ version is not going to move a panel system that wieghs over 100# The motors will, but the power generation won’t: I need a pair of 100w panels if I want that to work correctly. Just not enough amperage out of the little 25w units I have on hand. At peak under optimum conditions, 25w only produces 1.5A. These are over 16 years old; likely only pushing an amp under full sunlight. Thats just not enough for motors rated at 2 amps. It might be enough to burn the brushes up,,, Not exactly my goal here.
So’sss. I’m considering adding a small system to charge a single battery, that will run the actuator, but need a way of controlling it that aint gonna cost me an arm, left buttcheek, and my right testicle. Looking in this direction,,,
But I wasn’t idle on the build.

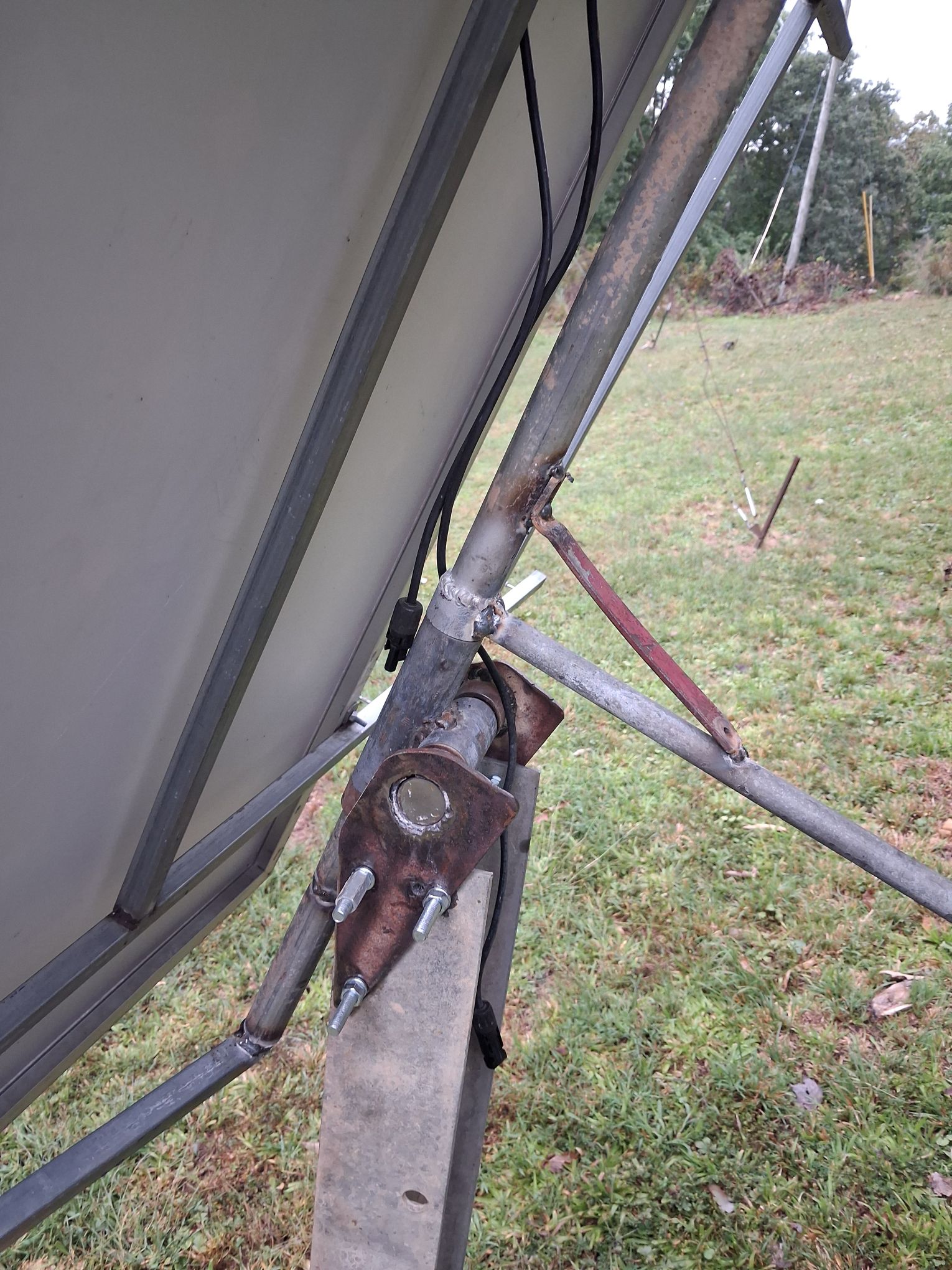

It’s hard to see, but I changed the bolts holding the U-joint to the beam. Long ones that pass through both sides of the beam; not as sloppy. Still need to put in the zerks but the whole is loosey-goosey enough that rust might actually help a bit. I wasn’t exactly rushing into 0.001″ tolerances here. Closer to 0.05″ tolerances: LOL.
I need to make the latitude adjustment arm and drill lock points on the beam for it. I’ll use an inclinometer to figure those points. I figure 45, 35, 25 will give me enough points for summer to winter shifts. Need to make a retaining system for the counter wieghts too. A simple pin and large washer will keep them on the bar. Typical cast iron dead weights are the counters.

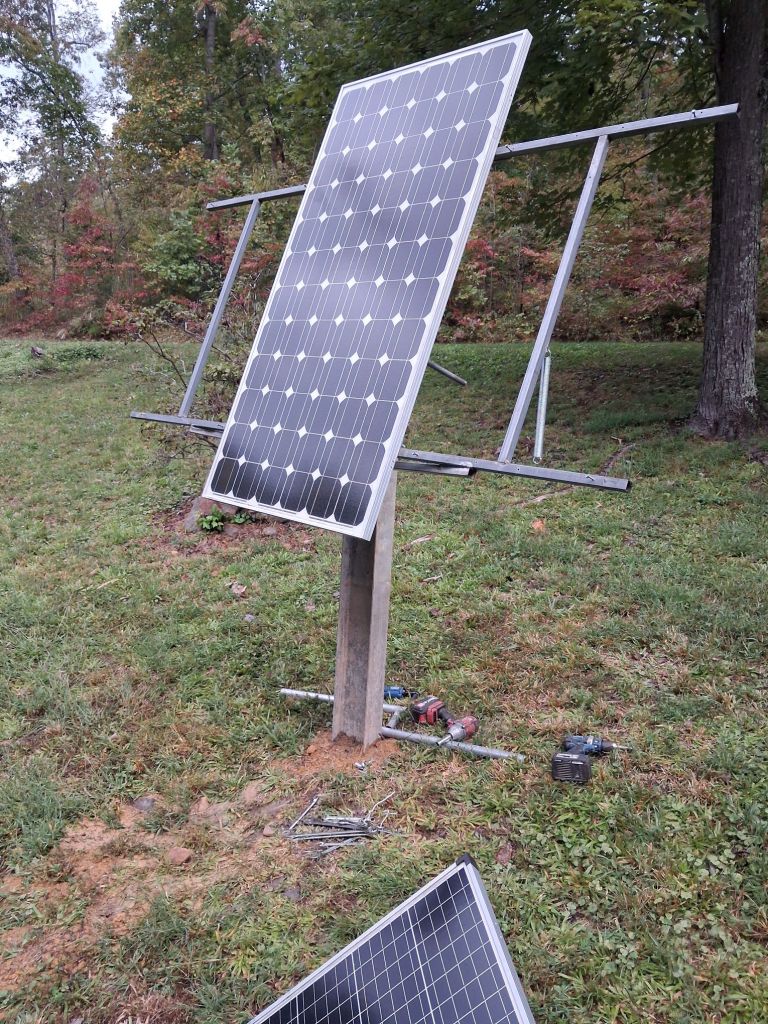

And no, I have not put all my panels on it. That is the big boy, but not the real electron pusher. (Fact, I’ve considered getting another pair of the 12v100w units to replace it. I run them in series pairs for 24v to overcome voltage drop on my lines. That big boy already does 24v straight. (and into its own charge controller so it can do its thing.) With the cloud cover today, I wasn’t going to get much juice, so felt changing over in peices would be prudent.
—————————-
Pissy weather, frustrations in design, and regulatory hints of the future have me running on a negative charge today. Won’t go into all the deets, but I’ve been quite pissy myself today. Prolly best I live single on a little backroad that looks like an abandoned logging road. I’d probably pop rounds at some interloper coming up my hill today.
Its freeday, bills be gettin’ paid, things are mostly moving in a good direction on this project (no sign nor word from Burnout, as if I am surprised,,,) and I’m gonna take a wee break for the eve. Love y’all.
